Ball Mill

Ball Mill

Input Size: Less than 30mm

Output Size: 0.4-0.047mm

Processed Materials: Limestone, calcite, barite, dolomite, potassium feldspar, marble, talcum, gypsum, kaolin, bentonite, medical stone, rock phosphate, manganese ore, iron ore, copper ore, gold ore, quartx, active carbon, carbon black, ceramic, coal, etc.

Send e-mail:sales@hxjq.com

Product Introduction Parameter Get Latest Price

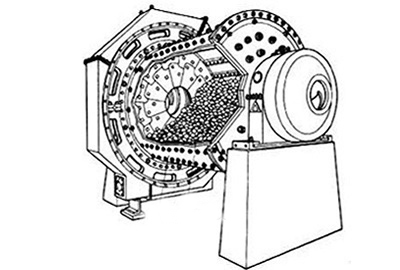

A ball mill is a type of grinder used to grind materials into extremely fine powder for use in paints, pyrotechnics, and ceramics. The grinding mills contain materials meant for crushing and grinding, such as balls of ceramic, small rocks, or balls made from stainless steel. The internal device of the ball grinding mill grinds material into powder-like substances, and can rotate continuously for optimal grinding and refinery production.

Ball Mill

The ball mill machine is not technology, but there have been environmental and evolutionary changes to the overall design in recent years. Efficiency has been thematically promoted in the manufacturing of these machines, and it is important to make sure that current maintenance keeps pace with current technology and machinery design.

Density of material to be processed, hardness of media or other materials, and chemical composition are considerations for the capabilities of the machinery, as well as their routine maintenance needs. If the ball grinder is regularly used to process extremely dense or dangerous materials, frequent maintenance and even modification for optimal use should be applied to the machinery to ensure that production is running at its most desired capacity. Pressure and speed should be regulated and checked periodically to ensure that grinding is taking place at the best rate, speed, and production output possible.

Throughout our nine decades in the business of providing our customers with quality products, we have developed methods and techniques of ensuring that what we produce is of the highest quality, and that our customers can carry on with their work, using our products. One way we have done this is our continual, working relationships with universities and research centers; this allows us to stay within the world of research, the world of cutting edge development. With this knowledge, we are able to provide the best build quality, and thus the best product for our customers.

When a ball mill grinder and grinding ball is what you need to meet your needs, then we know that the right choice lies here in Hongxing Machinery.

Technical Data

Model Shell rotation speed
(r/min)
Ball load
(t)
Feeding size
(mm)
Discharging size
(mm)
Capacity
(t/h)
Motor power
(kw)
Total weight
(t)
Ф900×1800 36-38 1.5 <20 0.075-0.89 0.65-2 18.5 5.85
Ф900×3000 36 2.7 <20 0.075-0.89 1.1-3.5 22 6.98
Ф1200×2400 36 3 <25 0.075-0.6 1.5-4.8 30 13.6
Ф1200×3000 36 3.5 <25 0.074-0.4 1.6-5 37 14.3
Ф1200×4500 32.4 5 <25 0.074-0.4 1.6-5.8 55 15.6
Ф1500×3000 29.7 7.5 <25 0.074-0.4 2-5 75 19.5
Ф1500×4500 27 11 <25 0.074-0.4 3-6 110 22
Ф1500×5700 28 12 <25 0.074-0.4 3.5-6 130 25.8
Ф1830×3000 25.4 11 <25 0.074-0.4 4-10 130 34.5
Ф1830×4500 25.4 15 <25 0.074-0.4 4.5-12 155 38
Ф1830×6400 24.1 21 <25 0.074-0.4 6.5-15 210 43
Ф1830×7000 24.1 23 <25 0.074-0.4 7.5-17 245 43.8
Ф2100×3000 23.7 15 <25 0.074-0.4 6.5-36 155 45
Ф2100×4500 23.7 24 <25 0.074-0.4 8-43 245 56
Ф2100×7000 23.7 26 <25 0.074-0.4 12-48 280 59.5
Ф2200×4500 21.5 27 <25 0.074-0.4 9-45 280 54.5
Ф2200×6500 21.7 35 <25 0.074-0.4 14-26 380 61
Ф2200×7000 21.7 35 <25 0.074-0.4 15-28 380 62.5
Ф2200×7500 21.7 35 <25 0.074-0.4 15-30 380 64.8
Ф2400×3000 21 23 <25 0.074-0.4 7-50 245 58
Ф2400×4500 21 30 <25 0.074-0.4 8.5-60 320 72
Ф2700×4000 20.7 40 <25 0.074-0.4 22-80 380 95
Ф2700×4500 20.7 48 <25 0.074-0.4 26-90 480 102
Ф3200×4500 18 65 <25 0.074-0.4 As per process conditions 630 149
Ф3600×4500 17 90 <25 0.074-0.4 As per process conditions 850 169
Ф3600×6000 17 110 <25 0.074-0.4 As per process conditions 1250 198
Ф3600×8500 18 131 <25 0.074-0.4 45.8-256 1800 260
Ф4000×5000 16.9 121 <25 0.074-0.4 45-208 1500 230
Ф4000×6000 16.9 146 <25 0.074-0.4 65-248 1600 242
Ф4000×6700 16.9 149 <25 0.074-0.4 75-252 1800 249
Ф4500×6400 15.6 172 <25 0.074-0.4 84-306 2000 280
Ф5030×6400 14.4 216 <25 0.074-0.4 98-386 2500 320
Ф5030×8300 14.4 266 <25 0.074-0.4 118-500 3300 403
Ф5500×8500 13.8 338 <25 0.074-0.4 148-615 4500 525

Quick Way to Get Price

Please tell us your materials, capacity and finished product design, we can offer better service for you. Contact Email: sales@hxjq.com
