Cement Mill

Cement Mill

Supply Ability: 8 Set/Sets per Month

Production capacity: 6.5-135t/h

Port: Qingdao,Tianjin, Shanghai or others

Feature: Grading effect, Easy to install, Simple maintenance

Send e-mail:sales@hxjq.com

Product Introduction Parameter Get Latest Price

Cement can be not only hardened in the air, but also better hardened in the water in which it will maintain and develop strength. So cement is kind of cementitious material which will be of stronger hardness in water. Cement mill is used for cement grinding. Cement crusher is applied for cement crushing. In cement production line you need to choose suitable raw material mill and cement crusher.

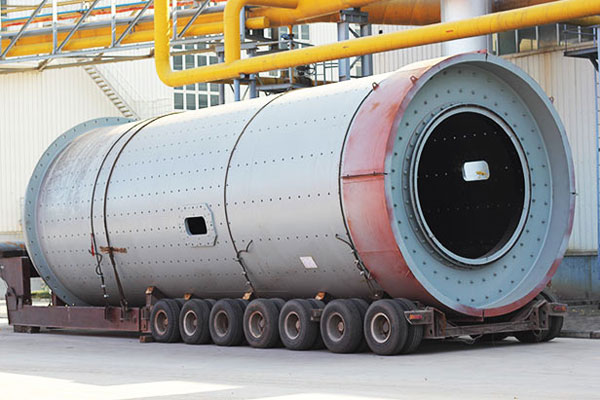

Cement Mill

Cement mill is the key equipment for grinding after the crush process, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics, and can be used for the dry and wet grinding for all kinds of ores and other grind-able material.

The China cement mills vary from traditional ball mill to new European trapezium grinding mill. In cement making plant, cement grinding mill and cement crusher play a very important role. They can crush or grind the cement to required fineness for industry application. China cement mills have been honored as famous brand of China machinery industry, national top brand product, fixed-point production of national building materials, etc. The cement mill price is also lower than that of the foreign countries.

Superiority of Hongxing Cement Plant

1. Strong financing and construction capability

2. Cost effective manufacturing capability

3. Patented technologies for reductions inpower consumption

4. Advanced technologies

Technical Data

Product specification
(m)
Milling form Transmission form Gear box Motor power
(kw)
Production capacity
(t/h)
Total weight
(t)
Model Speed reduction ratio
Φ1.83×7 Open flow Brim ZD60 4.5 245 6.5-8 43.8
Φ2.2×7.5 Open flow Brim ZD70 5 380 8-10 64.8
Φ2.2×11 Open flow Brim D110 35.5 630 12-13 104.6
Φ2.2×13 Open flow Brim D110 35.5 630 16-18 114
Φ2.4×13 Open flow Brim D110 35.5 800 20-23 130.6
Φ2.6×13 Open flow Brim MFY100 19.5 1000 28-32 158
Φ3×9 Circle flow Brim D125 41.2 1000 28-36.5 167
Φ3×11 Circle flow Brim D140 42.8 1250 36-47 180
Φ3.2×13 Open flow Brim D140 36.5 1600 45-50 225
Φ3.5×13 Circle flow Brim JDX1000 5.84 2000 60-65 275
Φ3.8×13 Open flow Central shaft MFY250 16.5 2500 60-62 320
Φ4.2×13 Open flow Central shaft JQS3550 15.6 3530 85-87 380
Φ4.6×14 Circle flow Central shaft JSI160-C 14.6 4200 120-135 485

Quick Way to Get Price

Please tell us your materials, capacity and finished product design, we can offer better service for you. Contact Email: sales@hxjq.com
