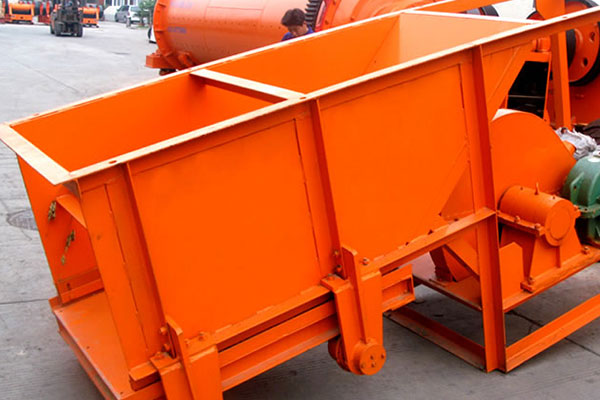

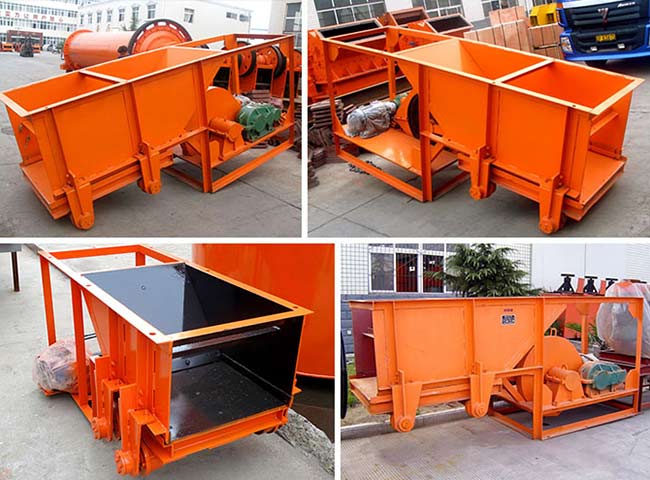

Chute feeder

The chute feeder can be installed on the ground or to the discharge port of ore bin. The chute bottom plates do the reciprocating movement, the movement frequency is 20-60 times/min and the stroke is 20-200mm. Stroke can be adjusted by the eccentric wheel, and the eccentric throw is half the stroke. According to the experience of some mine sites, the eccentric throw should be no less than 30mm for cohesive ore.

The chute width is 2-2.5 times of maximum feeding granularity. The biggest chute feeder can supply ore with granularity less than 500mm. The most common specification is 980*1240 chute feeder, with feeding granularity between 350 and 0mm, which is the best partner of 400*600 jaw crusher.
