Stone Crusher

Stone Crusher

Feeding Size: 125-1500mm

Processing Capacity: 10-800t/h

Processing Material: Limestone, granite, pebbles, cobble, iron ore, basalt and all kinds of hard and soft ores with compressive strength not higher than 320 Mpa.

Send e-mail:sales@hxjq.com

Product Introduction Parameter Get Latest Price

Stone crusher is used to crush hard rock, soft rock, gravel, slag, foundry wastes, etc. The available stone crushing machines are also accordingly divided into mobie crusher,  jaw crusher, impact crusher, cone crusher, etc.

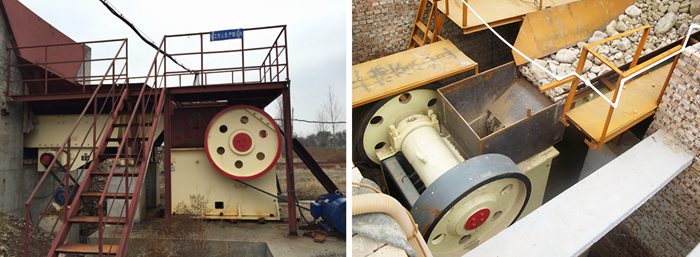

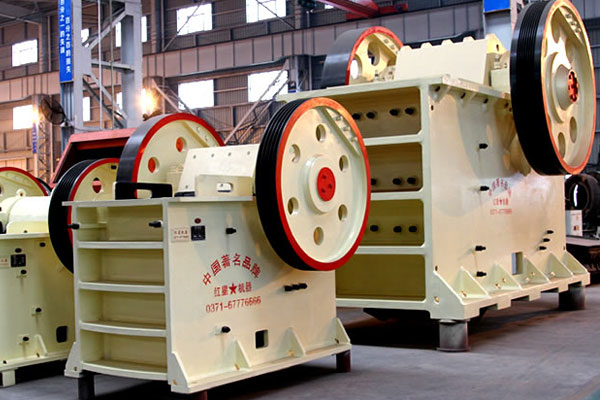

Jaw Crusher

Jaw Crushers are often used as primary crushers, which are suitable for most any type of materials. Hongxing jaw crusher is designed to offer you the highest possible quality in relation to price, and is also an excellent choice for stationary installations.

jaw crusher

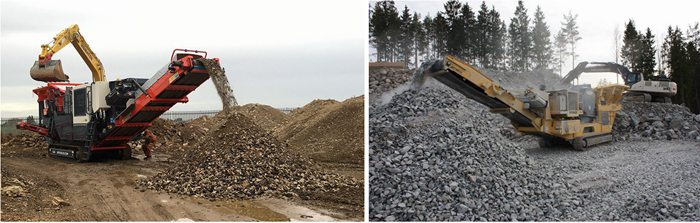

Mobile Crusher

We engineer a wide range of mobile crushers and screens, both tracked and wheeled, to help you process rock in the toughest conditions. The mobile crushers are transported to the work site directly to crush and screen the aggregate, thus reducing the time and cost of transporting from sites to sites.

mobile crusher

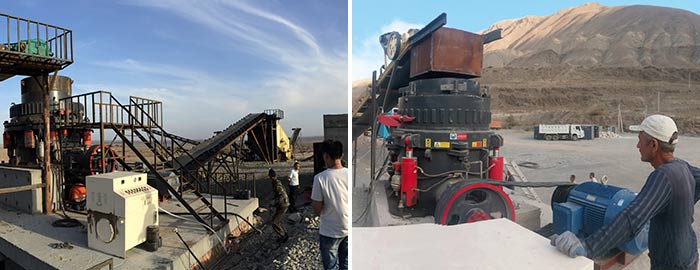

Cone Crusher

Cone crushers are an excellent choice in secondary, tertiary, quaternary and pebble-crushing applications. They are equipped with the hydraulic system, which provides safety and setting-adjustment functions. End products for quarries include aggregates for concrete, asphalt and railway ballast.

Stone Crusher_Cone Crusher

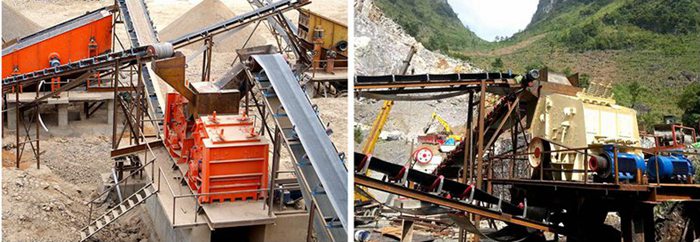

Impact Crusher

The impact crusher range is ideal for shaping applications including making chips, sand, concrete manufacture, and glass recycling. The range includes both horizontal and vertical impact crushers.  Designed for increased safety, performance and uptime, Impact crusher is the perfect choice for secondary and tertiary applications.

imapct crusher

Applications

Ideal for

  • Primary, secondary and tertiary crushing application
  • Surface and underground applications
  • Stationary, portable and mobile installations
  • For hard rock, soft rock, gravel, recycling, industrial materials, slag, foundry waste...

Technical Data

Model
Feed opening
(mm)
Max.feeding size
(mm)
Adjusting range of discharge opening
(mm)
Processing capacity
(t/h)
Rotation speed of eccentric shaft
(r/min)
Motor power
(kw)
Total weight
(t)
Dimensions
(L×W×H)
(mm)
PE-150×250 150×250 125 10-40 1-3 250 4P   5.5 0.8 720×660×850
PE-200×300 200×300 180 15-50 2-6 260 4P   7.5 1.2 910×750×990
PE-200×350 200×350 180 18-70 3-10 260 4P   11 1.5 1000×870×990
PE-250×400 250×400 210 20-60 5-21 300 6P   15 2.8 1300×1090×1270
PE-400×600 400×600 340 40-100 16-64 275 6P   30 7 1730×1730×1630
PE-500×750 500×750 425 50-100 40-110 275 6P   55 12 1980×2080×1870
PE-600×750 600×750 500 150-200 80-240 275 6P   55 15.8 2070×2000×1920
PE-600×900 600×900 500 65-160 50-160 250 6P   55 17 2190×2206×2300
PE-750×1060 750×1060 630 80-140 110-320 250 8P   110 29 2660×2430×2800
PE-800×1060 800×1060 640 130-190 130-330 250 8P   110 29.8 2710×2430×2800
PE-830×1060 830×1060 650 160-220 150-336 250 8P   110 30.7 2740×2430×2800
PE-870×1060 870×1060 660 200-260 190-336 250 8P   110 31.5 2810×2430×2800
PE-900×1060 900×1060 685 230-290 230-390 250 8P   110 33 2870×2420×2940
PE-900×1200 900×1200 750 95-165 220-380 200 8P   110 52 3380×2870×3330
PE-1000×1200 1000×1200 850 195-265 315-500 200 8P   110 55 3480×2876×3330
PE-1200×1500 1200×1500 1020 150-350 400-800 180 6P   160-220 100.9 4200×3300×3500
PE-1500×1800 1500×1800 1200 220-350 500-1000 180 8P   280-355 139 5160×3660×4248
PEX-150×750 150×750 120 18-48 8-25 320 4P   15 3.8 1200×1530×1060
PEX-250×750 250×750 210 25-60 13-35 330 6P   22 5.5 1380×1750×1540
PEX-250×1000 250×1000 210 25-60 16-52 330 6P   30 7 1560×1950×1390
PEX-250×1200 250×1200 210 25-60 20-61 330 6P   37 9.7 2140×1660×1500
PEX-300×1300 300×1300 250 20-90 16-105 300 6P   55 15.6 2720×1950×1600
